Intel Celeron Quad core CPU J1900 Multi Gigabit Ethernet port Fanless x86 mini PC for pFsense and Vyos Router applications

Intel Celeron Quad Core CPU J1900
  • Seller Tom Electronic Technology (Shenzhen) Limited
  • Min. Order 10 Unit/Units
  • FOB Price US $180-245 /Unit

Item Details

Port: Shenzhen, Shanghai, Ningbo
Supply Ability: 10000 Unit/Units per Month
Payment Terms: L/C,T/T,Western Union

Product Description

Product Description
Intel Celeron Quad core CPU J1900 Multi Gigabit Ethernet port Fanless x86 mini PC for pFsense and Vyos Router applications
Intel Celeron Quad core CPU J1900 Multi Gigabit Ethernet port Fanless x86 mini PC for pFsense and Vyos Router applications

Dimension

156*128*37mm( mSATA SSD)/156*128*50mm(2.5'' HDD) (L*W*H)

Weight

1.2 Kg /1.5Kg (Reference)

Power Consumption

TDP 10W

Onboard CPU

Intel® Celeron® Processor J1900

2M Cache,2 GHz, up to 2.41 GHz)

Memory

Max.Supports up to 8GB Memory

Support DDR3 1333/1600 MHz 1.35V

1x DDR3 DIMM Memory slot

Chipset

Intel Soc Chipset

Storage

- supports mSATA SSD

- supports 2.5" HDD ( optional )

Onboard VGA

Intel HD Graphics

Onboard LAN

4* Intel I211AT - 10/100/1000 Controller

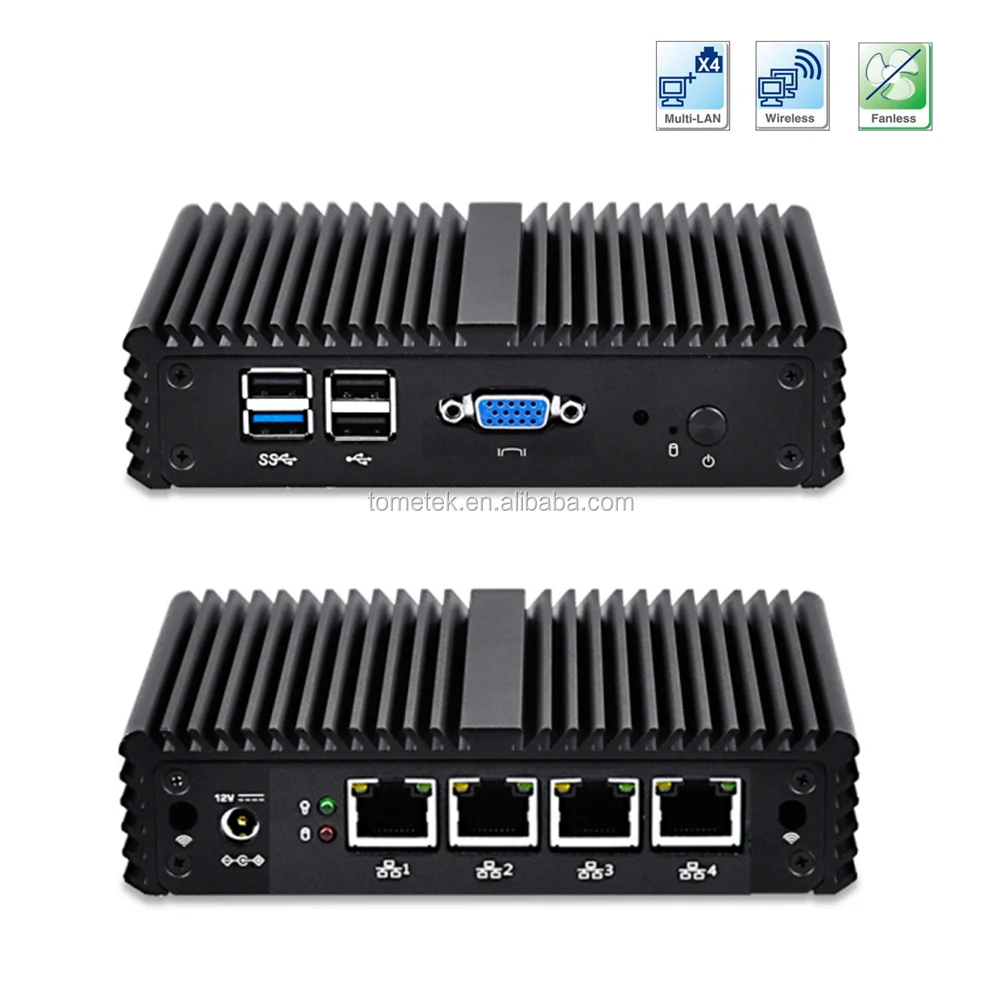

Front-Panel Connectors

• Power on/off button

• Power LED

• 3 x USB 2.0 Ports

• 1 x USB 3.0 Port

• 1 x VGA Port

Internal

Connectors

• 1 x Mini PCIe port (for mSATA SSD)

• 1 x Mini PCIe port [for WiFi/Bluetooth Module. (USB signal only)

• 1xDDR3L SO-DIMM Memory Slot

• 1xSATA Port

• 1xSATA power connector

• 1x Automatically boot jumper

• 1x RS232 header (optional)

• 1xSIM Card slot (optional)

Back-Panel Connectors

• 1 x DC 12V input

• Power LED, HDD LED

• 4 x RJ-45 Ports

• WiFi and Bluetooth (optional)

Operating System

Support Windows 7 /8 / Windows 10 /Linux etc.

Intel Celeron Quad core CPU J1900 Multi Gigabit Ethernet port Fanless x86 mini PC for pFsense and Vyos Router applications

Packaging & Shipping

FAQ

1. why cost is compared high?

All design, material choosing ,production & test process are priority for steady & reliability requirement first. Especial for telecommunication application purpose like configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, VyOS router ...

2. what kind of accessaries can you provide?

DRAM , SSD & HDD , WiFi module as requested.

3. what kind of service can you provide?

Installation OS system like Windows, Linux

If ODM model needed, please discuss technical SPEC first, then proceed project with confirmed NRE.


4. How about the transprotation?

DHL, TNT, FEDEX, UPS, EMS, Shipping etc.

5. What's your warranty?

1 Year.
