Low cost celeron j1900 nano itx x86 single board computer with sim card slot fanless

Low Cost Celeron J1900 Nano Itx
  • Seller Shenzhen Senba Innovation Technology Co., Ltd.
  • Min. Order 2 Piece/Pieces
  • FOB Price US $1-79 /Piece

Item Details

Port: Shenzhen
Supply Ability: 3000 Piece/Pieces per Month
Payment Terms: T/T,Western Union,MoneyGram,Paypal

Product Description

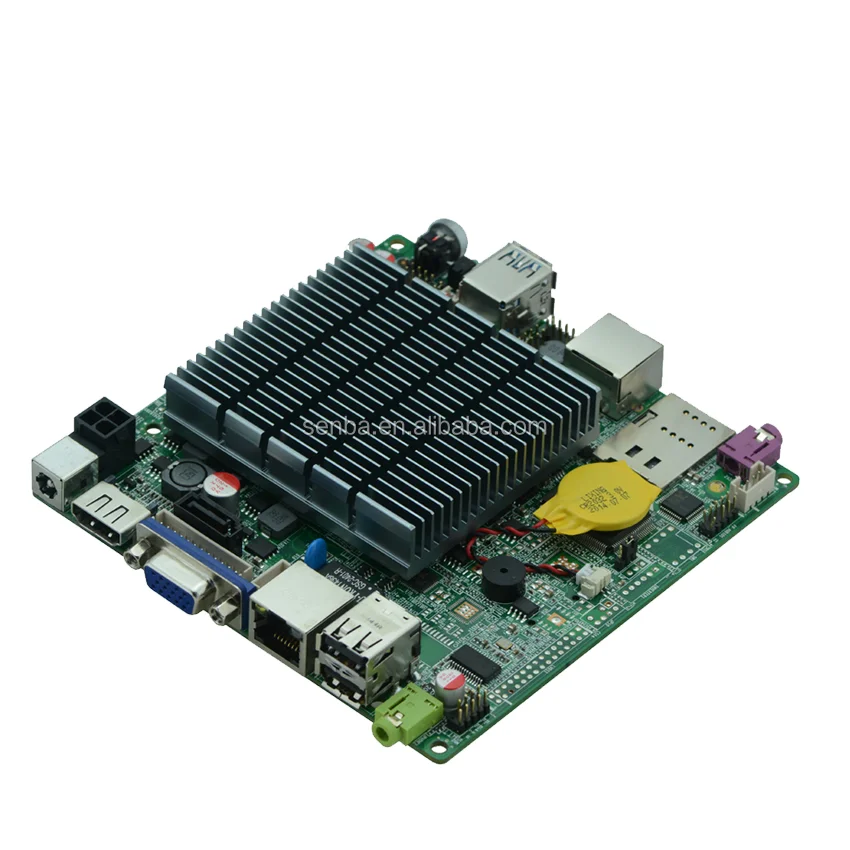

low cost celeron j1900 nano itx x86 single board computer with sim card slot fanless

Product Description

Model No.

STX-N29 VER:1.5

CPU

Integrated Intel J1900/2.00GHz Quad core processor,TDP10W

Chipset

Based on Intel Bay trail SOC platform

Memory

1*DDR3 SODIMM,Support 1600/1333MHz DDR3L/1.35V Memory,up to 8GB

Graphics

Integrated Intel HD Graphics

Provide 1*VGA,1*HDMI (LVDS optional)

Supprot VGA+HDMI Synchronous/asynchronous display

LAN

1* RTL8111F Gigabit Ethernet support wake on LAN/PXE

Storage

1* SATA;1*mSATA

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier

Advise 2Ω 5W speaker

Expansion Slots

1* Mini-PCIE slot support 3G/WIFI module

1* MSATA slot support SSD/WIFI.SSD transfer rate up to 3Gbps

Rear I/O

3*USB2.0,1*USB3.0

1* HDMI

1* VGA

1* RJ-45 Gigabit Ethernet connector

1* Line out(Green),1* MIC(Violet)

1* COM

1* Power switch

1* 12V DC_JACK power input

Internal I/O

1* JVGA1(1*12pin) same signal with DB15

1* RS232 serial port

2* USB2.0(2*5pin)

1* PS/2 KB/MS Connector(1*6Pin)

1*Front panel audio connector 2*5pin

1* SIM card socket

1* PWROUT (HDD power supply connector) 1*4pin

1* front panel function buttons and indicator connector 2*5Pin

1* 4pin ATX 12V power input

1* Power amplifier interface(1*4pin)

FAN interface

1*4pin CPU FAN

GPIO

Support 4 way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

120mm x 120mm
