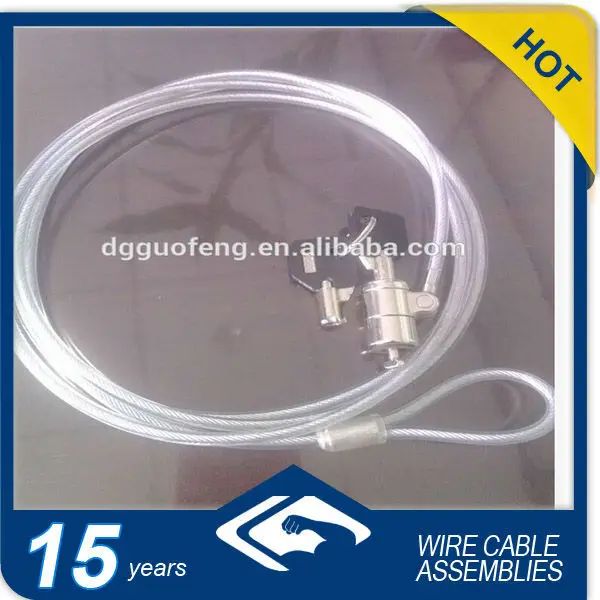

Security lock, protection cable

Security Lock Protection Cable
  • Seller
  • Min. Order -
  • FOB Price US $3.50-3.50

Item Details

Place of Origin: Guangdong China (Mainland)
Brand Name: gf
Model Number: security lock
Diameter of wire rope: 0.5mm-11mm
Construction of wire rope: 1x7, 7x7, 1x19, 7x19
Material of wire rope: Stainless steel, galvanized steel
Material of coating: PE, PP, PA, PVC
Type: security lock
color: clear
length: 1220mm
head part of the lock: zinc alloy

Product Description

Product Description

1.Diameter

0.3-11mm

Custom-made available

2.construction

7X7,etc

3.material

stainless steel

4.MOQ

500pcs

5.length 1.5m-5m
6.place of origin china
7.coating

as requirement

8.end parts of fittings

a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc

9.Lead time

7days if there were enough material in stock

10.sample

Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.

application

Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden

Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be.

WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings

specification

Refer to the drawing as below:

All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.

how to choose material:1stain1.1.1.

1.stainless steel :

providing good corrosion resistance and strength comparable to galvanized carbon steel grades.

2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

Diameter

construction

weight(100m)

Minimum Breaking load(N)

1.0mm

1*19

0.495

950(95kg)

7*7

0.393

650 (65kg)

1.2mm

1*19

0.713

1440(144kg)

7*7

0.566

950(95kg)

1.5mm

1*19

1.114

2200(220kg)

7*7

0.884

1500(150kg)

1.8mm

1*19

1.604

3200(320kg)

7*7

1.273

2100(210kg)

2.0mm

1*19

1.98

3900(390kg)

7*7

1.527

2650(265kg)

2.4mm

1*19

2.851

5650(565kg)

7*7

2.264

3800(380)kg

2.5mm

1*19

3.094

6100(610kg)

7*7

2.381

4100(410kg)

3.2mm

7*7

4.024

6850(685kg)

7*19

3.901

6800(680kg)

3.8mm

7*19

5.675

9650(965kg)

7*7

5.502

9600(960kg)

4.0mm

7*19

6.609

12500(1250kg)

4.2mm

7*7

6.933

13000(1300kg)

4.5mm

7*7

7.958

13500(1350kg)

4.8mm

7*19

8.778

15300(1530kg)

6.0mm

7*19

8.716

23900(2390kg)

our service and FAQ

Company Information

1.company profile:

Dongguan City Guofeng Sports Equipment Fitting Co., Ltd is a professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment.

Products are mainly used in vehicle internal brakes, stalls, car rearview mirror, fuel pedal, mechanical and electronic drive control system settings. In addition, also be used for general industrial, for supporting, dragging and dropping hoists.

2.Export percentage: 51% - 60%

3.factory information:

factory size:5000.00 square meters

staff number:100-300people

location: the first floor, D Building,NO.10Road. Longyan Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China

production lines:3 lines

R&D:5-10people

QC:5-10people
