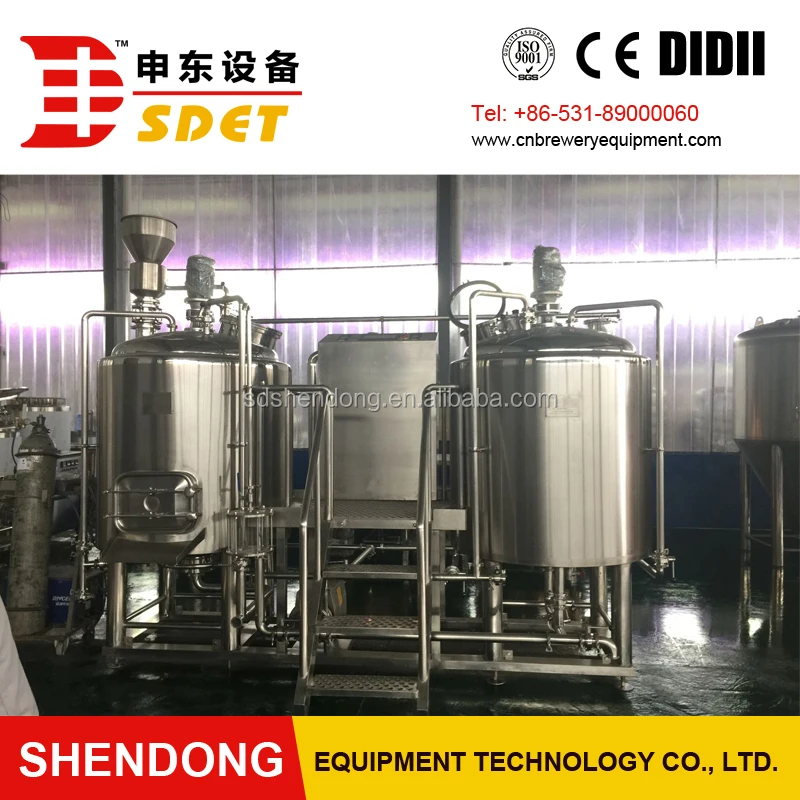

Turnkey service 500L Beer manufacturing equipment

Turnkey Service 500L Beer Manufacturing Equipment
  • Seller Shandong Shendong Equipment Technology Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $4500-40000 /Set

Item Details

Port: Qingdao
Supply Ability: 15 Set/Sets per Month
Payment Terms: L/C,T/T

Product Description

Turnkey service 500L Beer manufacturing equipment

SDET beer manufacturing equipment has been widely used around the world, such as small breweries, hotels, bars, teaching laboratories and leisure field, according to the German Munich pure vinification, divided into "Larger" and "Ale" two series, brewing barley beer, wheat beer, dark beer, green beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.

Product Description

Malt milling system:

Model: 150kgs, 200kgs/300kgs, 500kgs, 1000kgs

Type: Mill stone type and double roller type see pictures as below:

Advantages:

Special malt mill for beer with advanced technology, after repeated improvement design of the latest products, has a lots of advantages, such as: small size, large output, reliable performance, energy saving, durable in use, simply maintenance and so on .

Mashing system:

Regular model: 100L-10000L

Brewhouse is consisted of mash tun, lauter tun, kettle tun, and whirlpool tun.

Two Vessels: (Mash lauter tun & Kettle whirlpool tun).

Three Vessels: (Mash tun&Lauter tun&Kettle whirlpool tun or Mash/Kettle tun&Lauter tun &Whirlpool tun).

Four Vessels: Mash tun&Lauter tun&Kettle tun&Whirlpool tun);

Welding: TIG full welding with high quality stainless steel SUS304;

Insulation: PU or Rock wool;

Lauter tun: Combi-grain raking device and milling sieve plate;

The bottom of mash kettle tun with stirrer deveice;

Heating way: steam heating or electric heating;

The tangent circle design accords with the heat concretion subsidence characteristics.

PLC programm design: Meet demands of various process of craft beer.

Options: Automatic exhaust device, (frequency converting control) bottom door of grain removal.

Fermenting system:

Regular model: 100L-10000L

Fermenter technicals:

The main material is the SUS304 stainless steel sanitary;

Dished head, cone 60 degrees to discharge of yeast, 100% TIG welding;

Design pressure of 0.2MPa, the test pressure 0.4MPa;

Inner wall thickness 3mm, outer thickness 2mm; PU 60-100mm;

Miror polishing inside, welds grinded to Ra 0.4um;

Configuring the vacuum valve / pressure relief valve, pressure gauge, thermometer, sampling valves, lifting lugs, side/ top manhole, CIP nozzle 360°;

Single zone or double zone cooling jacket; Miller board;

Electronic thermometer sensor interface;

BBT technical note:

The main material is the SUS304 stainless steel sanitary;

Dished head, cone 160 degrees, 100% TIG welding;

Design pressure of 0.2MPa, the test pressure 0.4MPa;

Inner wall thickness 3mm, outer thickness 2mm; PU 60-100mm;

Miror polishing inside welds grinded to Ra 0.4um;

Configuring the vacuum valve / pressure relief valve, pressure gauge, thermometer, sampling valves, lifting lugs, side/ top manhole, CIP nozzle 360°, cabonation stone;

Single zone or double zone cooling jacket; Miller board;

Electronic thermometer sensor interface;

Sight glass is optional:

Filtration System

Types: candle types diatomite filter; plate frame diatomite filter, Membrane filtration.

CIP cleaning system:

For the CIP system, we have two types for your choose, CIP tanks and CIP portable pump, see below pictures, which type do you choose?

CIP portable pump:

Easy to move and operation, cost is lower, suitable for small brewery from 100L-300L;

CIP tanks: including Disinfection tank, Alkali tank and washing pump, the cleaning is more completed, suitable for bigger systems.

Glycol cooling system:

Combination: Glycol water tank, glycol water pump, chiller.

Working principle:

Firstly the refrigerating unit cools the glycol water in the glycol water tank, and then glycol tank cool the fermenter by glycol water circularly; And also cool the hot wort through plate heat exchanger.

Refrigerating unit: adopt international brand compressor (Copeland, Sanyo), evaporator and condenser.

Advantage: new type plate heat exchanger can improve 20% than copper coil about the cooling effect

All low-voltage apparatus are ABB, Schneider and SIMENS brand.

Control system:

Options: Digital PID semi-automatic controller & PLC fully automatic controller

Advantages:

PID controller: Operation and maintenance is simple and convenient

PLC controlelr: Stable performance, automatic preserve recipe and historical data

Shendong Beer Equipment Technology Parameters

Capacity

100L

200L

300L

500L

1000L

2000L

Model

SDET-100

SDET-200

SD-300

SDET-500

SDET-1000

SDET-2000

Floor space

15sq.m.

25sq.m.

35sq.m.

45sq.m.

80sq.m.

120sq.m.

Power consumption

18KW

25KW

29KW

35KW

60/20KW

60/25KW

Fermentation time

8-12 days

8-12 days

8-12 days

8-12 days

8-12 days

8-12 days

Beer equipments detailed configuration list:

mashing system

Lauter tun

Mash kettlewhirlpool

Wort pump

Combined pipes

Frequency inverter

Malt miller

Heat exchanger

Oxygen adder

Fermenting tanks

Fermenting tank

Valve pipe

Cooling pipe

Thermal meter

Pressure meter

Cooling system

Ice water tank

chiller

Ice water pump

Pipe & valve

Controlling system

Power controlling cabinet.

Meter controlling board

Refrigerator board

PLC control board for option

Washing system

Washing tanks

Mobile pump

Valve & pipe

Beer sale section

Little wooden keg

Beer valve

Soft pipe

Auxiliary equipments

1. Complete new auxiliary systems.
2. Auxiliary systems equipment selection of leading brand and imported brand equipment.
3. The auxiliary systems are long service life, high-performance, high-quality, low-loss.
4. Stainless steel fittings materials are all adopt SUS304/316, applicable beer equipment to ensure the safety of food grade.
5 electrical accessories reach CE export standards.
6. Various auxiliary systems role in the whole equipment system, supporting reliable (available free matching).
7. Supporting auxiliary system voltage and frequency match exactly.
8. Stable quality, superior performance, strict quality control.
